Product List
 |
Product Name:

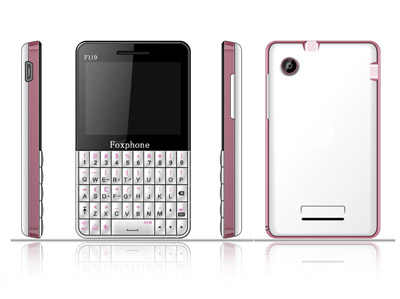

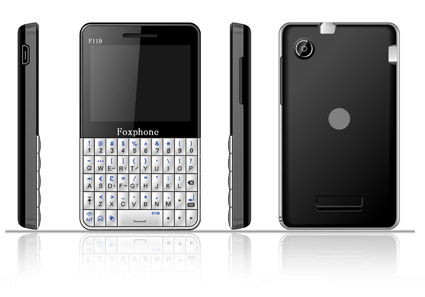

F119 qwerty cellular phone
Model:
F119
Product Details:
Brand name: Foxphone
Model number: F119
FOB price: /pc FCA Hongkong
| SECTION A. |
GENERAL SPECIFICATION |
| Motherboard |
MTK6252C |
| Operating Frequency |
GSM 850/900/1800/1900MHz |
| Dimensions |
103*61*10mm |
| Phone type |
Qwerty Bar phone, dual sim dual standby |
| Ringtones |
Polifónico (64 canales), MP3 |
| Vibration |
YES |
| Multimedia |
MP3 / MP4 |
| |
Bluetooth v. 2.1 + EDR |
| |
Radio: FM |
| |
TV: Analog |
| |
Video Recorder: YES (AVI format) |
| WIFI |
WLAN IEEE 802.11 b/g |
| Display |
2.4 inch TFT touch screen |
| Colour |
black,white |
| Camera |
0.3 Mega pixels, single camera |
| Multi-media |
MP3 / MP4 / FM / Bluetooth, Analog TV |
| Earphone port |
10pin mini USB |
| Memory Functions |
External Memory T-FLASH upto 8GB |
| Talking time |
about 100-160 minutes |
| Standby time |
about 30-48 hours |
| Battery |
500Mah capacity |
| Browser |
WAP 2.0/xHTML, HTML |
| Data Transfer |
Max Download Speed: 0,24 Mbps |
| |
Max Upload Speed: 0,24 Mbps |
| USB port |
12pins USB,DC Jack |
| Flash torch |
YES |
| Flash memory |
64MB+32MB |
| Additionals |
Alarm/Tasks/Calendar/Calculator/World clock/Currency converter/Stopwatch |
| Language |
Language: English, Spanish, french |
| SECTION B. |
ELECTRICAL SPECIFICATIONS |
| 1 General |
|
| |
TRANSMIT FREQUENCY |
| |
824 MHz ~ 849 MHz/880 MHz ~ 915 MHz |
| |
1710MHz ~ 1785MHz / 1850MHz ~ 1910MHz |
| |
RECEIVE FREQUENCY |
| |
869 MHz ~ 894 MHz / 925 MHz ~ 960 MHz |
| |
1805MHz ~ 1880MHz / 1930 MHz ~ 1990MHz |
| |
The Number of Time Slot 8 |
| |
The Number of Channels 124/174/375/299 |
| |
Channel Spacing 200 kHz |
| |
Power Supply Rechargeable Li-Ion Battery 3.7V/680mAh |
| |
Operating Temperature -10℃ ～ +55℃ |
| 2 Transmitter |
|
| |
OUTPUT POWER |
| |
Maximum Output Power 33±2/33±2 / 30±2 / 30±2 dBm |
| |
Minimum Output Power 5±5 / 0±5 dBm |
| |
Frequency Error ±90Hz/±90Hz/±180Hz/±180Hz |
| |
Phase Error RMS < 5°, PEAK < 20° |
| |
SAR INFORMATION |
| |
SAR Head: 0,67 W/Kg |
| |
SAR Body: 0,88 W/Kg |
| |
FRECUENCY STABILITY |
| |
850Mhz: ± 0,00031 ppm (-10 ºC a +55 ºC) |
| |
900Mhz: ± 0,00031 ppm (-10 ºC a +55 ºC) |
| |
1850Mhz: ± 0,00031ppm (-10 ºC a +55 ºC) |
| |
1900Mhz: ± 0,00031 ppm (-10 ºC a +55 ºC)
|
